The very first thing I had to come up with is the stand for the instrument. I opted for the aluminum tripod stand for the lighting equipment (I believe that's what it was). I bought two guitar neck supports which are made from thick steel rod with a foam sleeve over it. The supports were easy to bend and reshape. I used one support the neck of Stagg, and the other to rest the instrument on. I re-drilled the pivot point of one of the legs of the tripod such that in the collapsed state all legs are still in parallel to the body like for stock tripod, but when all 3 legs are spread apart, the stand tilts toward shortest leg and stands at the angle. As a result, the instrument leans back, which prevents whole contraption from tipping over. The bottom support is removable. I've made the gap between rods just large enough for the end pin to fit in there. The instrument rests on the collar that holds the end pin.

See the photos below.

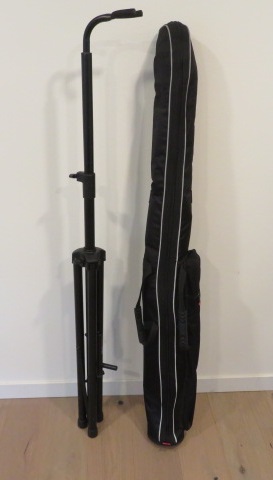

001.jpg (41934 bytes)   Collapsed stand is abouth the same size as the Stagg in the carrying bag.

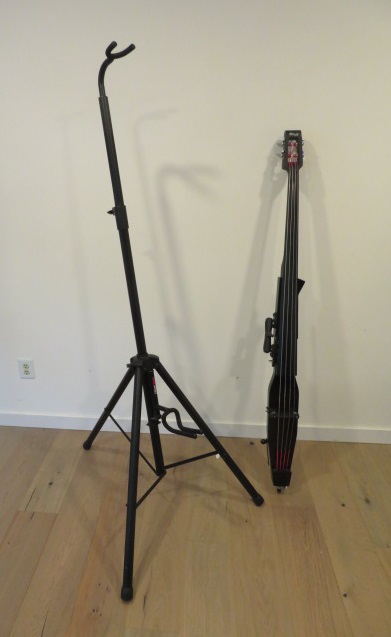

  002.jpg (71067 bytes)   Working position with bottom support inserted.

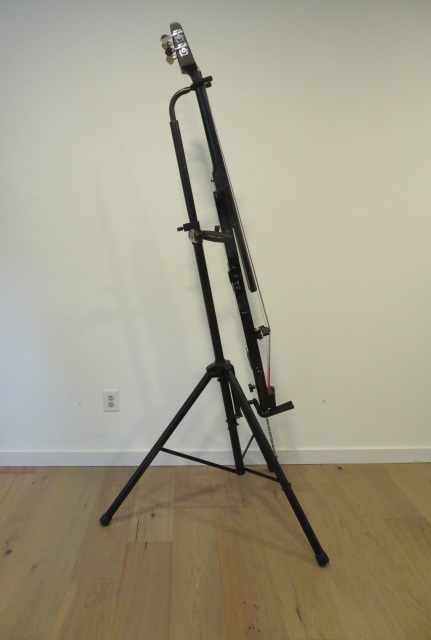

  003.jpg (74898 bytes)    Side view of the instrument on the stand.

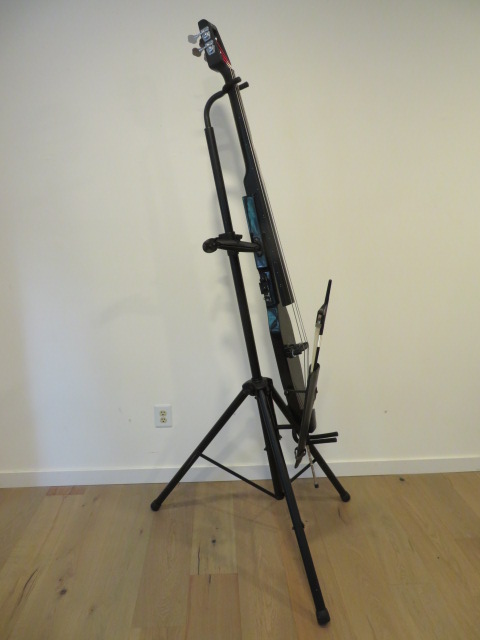

004.jpg (81402 bytes)   Another view with body support extended and bow quiver attached.

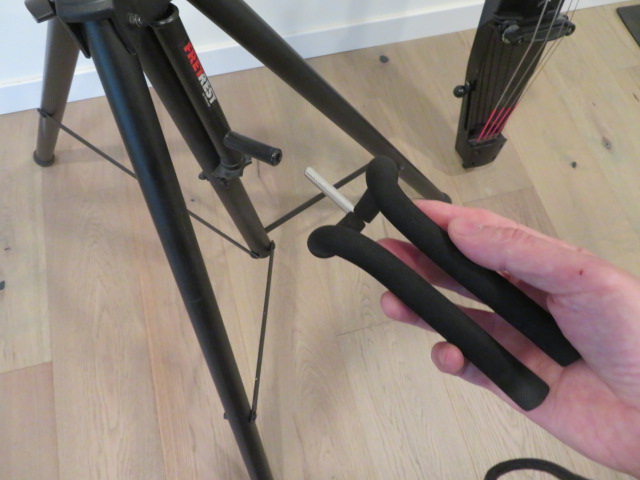

007.jpg (111252 bytes)   Bottom support removed for ease of transporting - no sticking out parts.

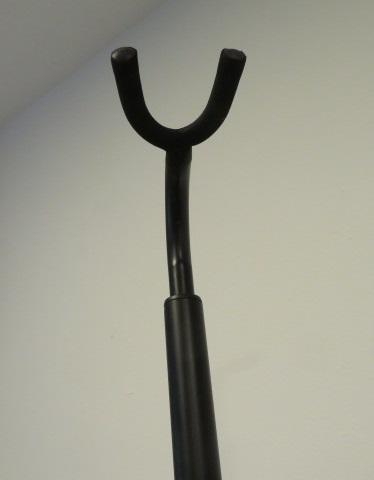

008.jpg (35885 bytes)    Top neck support. It can be removed, but it is so unintrusive, I've decided to leave it on permanently.
